1 論理式からMIL記号への変換

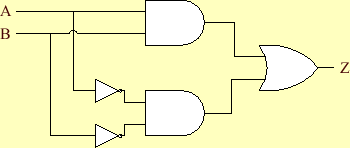

$\displaystyle (1)\hspace{1mm} Z$

$\displaystyle =A\cdot B+\bar{A}\cdot \bar{B}$

$\includegraphics[keepaspectratio, scale=1.0]{figure/MIL411.eps}$

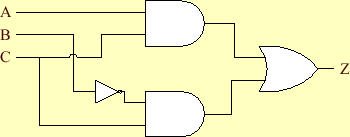

$\displaystyle (2)\hspace{1mm} Z$

$\displaystyle =A\cdot C+\bar{B}\cdot C$

$\includegraphics[keepaspectratio, scale=1.0]{figure/MIL412.eps}$

$\displaystyle (3)\hspace{1mm} Z$

$\displaystyle =\overline{A\cdot C+\bar{B}\cdot C}$

$\includegraphics[keepaspectratio, scale=1.0]{figure/MIL413.eps}$

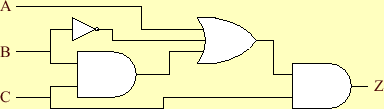

$\displaystyle (4)\hspace{1mm} Z$

$\displaystyle =\left[(A+B\cdot C)+\bar{B}\right]\cdot C$

$\includegraphics[keepaspectratio, scale=1.0]{figure/MIL414.eps}$

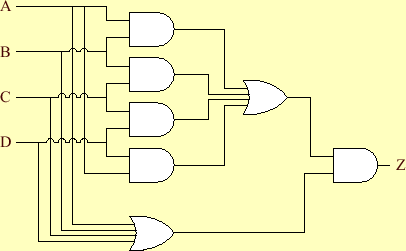

$\displaystyle (5)\hspace{1mm} Z$

$\displaystyle =(A\cdot B+ B\cdot C +C\cdot D +D\cdot A)\cdot (A+B+C+D)$

$\includegraphics[keepaspectratio, scale=1.0]{figure/MIL415.eps}$
